1) Comparison of product features
  Existing generator Highly efficient permanent magnet generator
Coil loss and insulation destruction
Weak
Minute
Efficiency (500KW) 91.9% 98.62%
Defects by lightning Weak None
Voltage waveform distortion factor More than THD 2.0% Less than THD 0.74%
After sales service professional Required Not required
Communication control Impossible Possible
Inrush current, wet-proof, salt-resistance Weak Strong

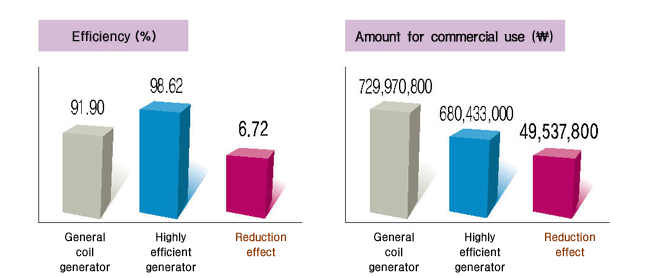

2) Comparison of economic effects
Type Efficiency (%) Q’ty of diesel used
(L/hr)
 Annual use Amount of annual use
(\1,300 per liter)
 Remarks
12 hours for 1 day
ⅹ365 days
 12 hours for 1 day
ⅹ365 days (\)
1) Existing coil generator
(500kw)
 91.9 128.2 561,516 729,970,800 Korea Electrotechnology Research Institute
2)Highly efficient permanent magnet generator (500KW) 98.62 119.5 523,410 680,433,000
Improvement result 6.72 8.7 38,106 49,537,800


Factories and buildings that need standby and prime power
Telephone offices, research institutes, hospitals, broadcasting stations, and other major facilities that need precise and clean power
Military equipment and mobile communication facilities
Mountainous areas and islands where prime power can’t be supplied
New energy production facilities, such as wind power and small hydraulic power
Organizations and facilities that need to save energy in the high oil price age as fuel consumption is reduced.

Suntech’s generator is a new concept for the next generation. It is technically excellent and competitive so once it is penetrated into the market of advanced countries, such as USA, Japan, China, and Europe, it will be highly successful.
It is essentially needed for research institutes, hospitals, governmental offices, and factories that need power of good quality produced by Suntech.
Suntech’s product is effective for increasing export and for substituting import.
